Key to the New World genera of Braconinae (Hymenoptera: Ichneumonoidea: Braconidae) and synopses of the genera
Key to the New World genera of Braconinae (Hymenoptera: Ichneumonoidea: Braconidae) and synopses of the genera
Donald L. J. Quicke1*
,
Buntika A. Butcher1
,
Michael Sharkey2
1Integrative Insect Ecology Research Unit, Department of Biology, Faculty of Life Sciences, Chulalongkorn University, Bangkok, Thailand
2Hymenoptera Institute, 1339 La Loma Dr., California, 92373, USA
*Corresponding author: [email protected]
Abstract
An updated key is provided to the 31 genera of Braconinae found in the New World (Western Hemisphere), including Greenland and the Caribbean Islands. It is based upon the keys by Quicke (1997) and Sharkey et al. (2021a). The key is fully illustrated and is meant to facilitate use by non-specialists; the online version additionally follows web accessibility standards and is usable on desktop and mobile devices. An overview of the subfamily, and one or two pages dedicated to each genus with further extensive illustrations are included.
Quicke, D.L.J., 1997. Subfamily Braconinae, pp.149-174. In: Wharton, R.A., Marsh, P.M., & Sharkey, M.J. (eds). Manual of the New World genera of Braconidae (Hymenoptera). Special Publication of the International Society of Hymenopterists, 439 pp.
Sharkey, M.J., Janzen, D.H., Hallwachs, W., Chapman, E.G., Smith, M.A., Dapkey, T., Brown, A., Ratnasingham, S., Naik, S., Manjunath, R., Perez, K., Milton, M., Hebert, P., Shaw, S.R., Kittel, R.N., Solis, M.A., Metz, M.A., Goldstein, P.Z., Brown, J.W., Quicke, D.L.J., van Achterberg, C., Brown, B.V. and Burns, J.M. 2021a. Minimalist revision and description of 403 new species in 11 subfamilies of Costa Rican braconid parasitoid wasps, including host records for 219 species. ZooKeys, 1013: 1-665. https://doi.org/10.3897/zookeys.1013.55600
Introduction
The Braconinae is a large subfamily of moderately small to large wasps with more than 2000 described species and almost 200 genera worldwide (Shenefelt 1978; Shaw and Huddleston 1991; Quicke et al. 2023). They are most diverse in the Old World tropics but are also well represented in the New World. Comparatively few studies have been made on the New World fauna. Many New World species are erroneously included under the generic names Iphiaulax Förster (a genus that has an entirely Old World distribution), Ipobracon Thomson (a junior synonym of Cyanopterus Haliday), or Bracon Fabricius. Iphiaulax and Bracon (=Microbracon Ashmead) have been used in a far wider sense than they are today. Many of these species have subsequently been reclassified by Quicke (1988a, 1989a, 1991) and Quicke and Genise (1994), mostly moving them into Digonogastra Ashmead. The aberrant Neotropical genus Gnathobracon Costa was redescribed and transferred formally from Rogadinae to Braconinae (Quicke and Huddleston 1991). Several new genera have been described over the past 30 or so years by Shenefelt (in Mason 1978), Quicke (1988b, 1989b, 1994, 1995), van Achterberg (1989), Quicke and Sharkey (1989), Quicke and Delobel (1995), and Quicke et al. (2020b).
Overview of subfamily
Phylogeny
Belshaw et al. (2001) published a phylogenetic analysis based on a limited number of genera with a combined 28S rDNA and morphological data set. Quicke et al. (2023) conducted a molecular-based phylogenetic analysis of the subfamily employing the following markers: mitochondrial cytochrome c oxidase subunit I, 16S rDNA, nuclear 28S D2-D3 rDNA and elongation factor 1-alpha. They revised the tribal classification, placed most genera to tribe and synonymized Alienoclypeus with Atanycolus. In that paper they erected a new, tribe, Compsobraconii to include a small number of entirely New World taxa that were recovered as a fairly basal clade within the subfamily.
Biology
With a very few exceptions, New World braconines are idiobiont ectoparasitoids of concealed holometabolous insect larvae, especially of Lepidoptera and Coleoptera, though a few species, mostly in the genus Bracon, attack concealed larvae of Diptera or 'Symphyta' (Hymenoptera). This is true for the whole subfamily except for the small, entirely Old World tropical subtribe Aspidobraconina whose included species are endoparasitoids of butterfly pupae, one known entomophytophagous species from India (Ranjith et al. 2016), and one completely predatory species (on a gall-forming mite) (Ranjith et al. 2022), also from India. Braconines are synovigenic and their large eggs are usually laid on a host that was previously paralyzed by injection of venom (Shaw and Huddleston 1991). Host feeding by adults appears to be quite common among species of Bracon and Habrobracon and sometimes involves the construction of feeding tubes (Schöller 2010). Both solitary and gregarious parasitism occur, sometimes with closely related species displaying different strategies (Wharton et al. 1989). Some genera appear to be somewhat specialized in their host range though most species are at least oligophagous. For example, the species of Myosoma Brullé, are parasitoids of stem-boring Lepidoptera (Pyralidae and Sesiidae), while species of Coeloides Wesmael are specialized on bark-boring Coleoptera larvae. The biologies of many Neotropical genera are unknown but members of one recently described genus, Cyclaulacidea Quicke and Delobel, have been reared from Bruchinae (Chrysomelidae) larvae, and most are presumed to be typical idiobiont ectoparasitoids. More aberrant biologies include one Compsobraconoides species that is an ectoparasitoid of adult Azteca ants (Yu and Quicke 1997), and a species group of Bracon that is a phytophagous seed-predator (Flores et al. 2006; Perioto et al. 2011).
Several species have been used in biocontrol programs in the New World. Various species of Bracon, Habrobracon Ashmead and Bracon (Pigeria) van Achterberg have been released to control a range of insects including stored product and stem borer pests. For example, Habrobracon brevicornis (Wesmael) has been released on numerous occasions in the USA against Heliothis virescens (F.), Helicoverpa zea (Boddie), Ostrinia nubilalis (Hubner) and Pectinophora gossypiella (Saunders), while Bracon (Pigeria) piger (Wesmael) has been released against Etiella zinckenella (Treit) and Cnephasia spp. Bracon mellitor Say is one of the most important natural parasitoids of the boll weevil, Anthonomus grandis Boheman, in the USA (Tillman and Gate 1989) while various other braconines are important in the natural regulation of bark beetle pests in North American forests. Members of several endemic New World genera are at least locally important parasitoids of pyralid cane borers, Diatraea spp., in Central and South America, including Digonogastra kimballi Kirkland, Palabracon diairaeaphilus Quicke, and Myosomatoides myersi Quicke (= pennipes Myers).
Diversity
There are probably tens of thousands of species of Braconinae worldwide but only about 3,000 species have been described (Yu et al. 2016). Species of the majority of New World genera are only infrequently collected but those of two species-rich genera, Bracon and the generally larger and often brightly colored Digonogastra, are abundant almost everywhere. Presently (Jan. 20, 2024), there are 1342 BINs (barcode index numbers, proxies for species (Rasnasingham and Hebert 2013) on BOLD, the Barcode of Life database, http://www.boldsystems.org); this includes 206 from Canada and 303 from Costa Rica, two of the best-collected countries in the World. Many more are to be found in both countries, especially Costa Rica.
Aguirre et al. (2017) found that braconine species had relatively narrow latitudinal ranges compared with those of the Doryctinae, which have broadly similar biology. Also, they showed that braconine species richness had two peaks in relation to altitude, one at 200m a.s.l., the second at approximately 1400m.
Distribution
The Braconinae have a cosmopolitan distribution, with the greatest generic, and probably specific, diversity being in the Old World tropics. The Nearctic fauna is similar in its generic composition to that of the Palaearctic, except for numerous species of Digonogastra which appears to be absent in the Palaearctic. The Neotropical genera are mostly endemic, except for Bracon, Vipio, and Digonogastra.
Distinguishing features
See Figs. 5-9 in Sharkey et al. (2023) for illustrations of morphological features. All New World species are distinctly cyclostome (i.e., have a large, dorsally rounded depression above the mandibles formed by a ventrally recessed clypeus and an exposed, concave and usually glabrous labrum), though in Gnathobracon and a few species in other genera the lower face and clypeal configuration are somewhat modified. The occipital carina is always absent (except in one aberrant Old World genus). The precoxal groove is almost always absent. Tergum 1 is usually distinctly flattened laterally with a domed apicomedial area and a midbasal depression. The hind wing cross vein m-cu is always absent and the hind wing vein M+Cu is less than 0.5 times the length of vein 1M (the latter nearly always being markedly thicker basally than distally). Most, if not all, Braconinae produce a distinctive, earthy-oily, smell when handled while alive and this can sometimes be noticed when walking through woodlands indicating the presence of larger species nearby.
Note. All images are by Sharkey unless otherwise noted and all imaged specimens are in the collection of the Hymenoptera Institute, unless otherwise noted.
Checklist
Table 1. List of the genera of Braconinae recognized in the New World.
Acgorium Sharkey & Quicke, 2020
Chartobracon van Achterberg, 1983
Compsobraconoides Quicke, 1989
Key to genera
Generic treatments

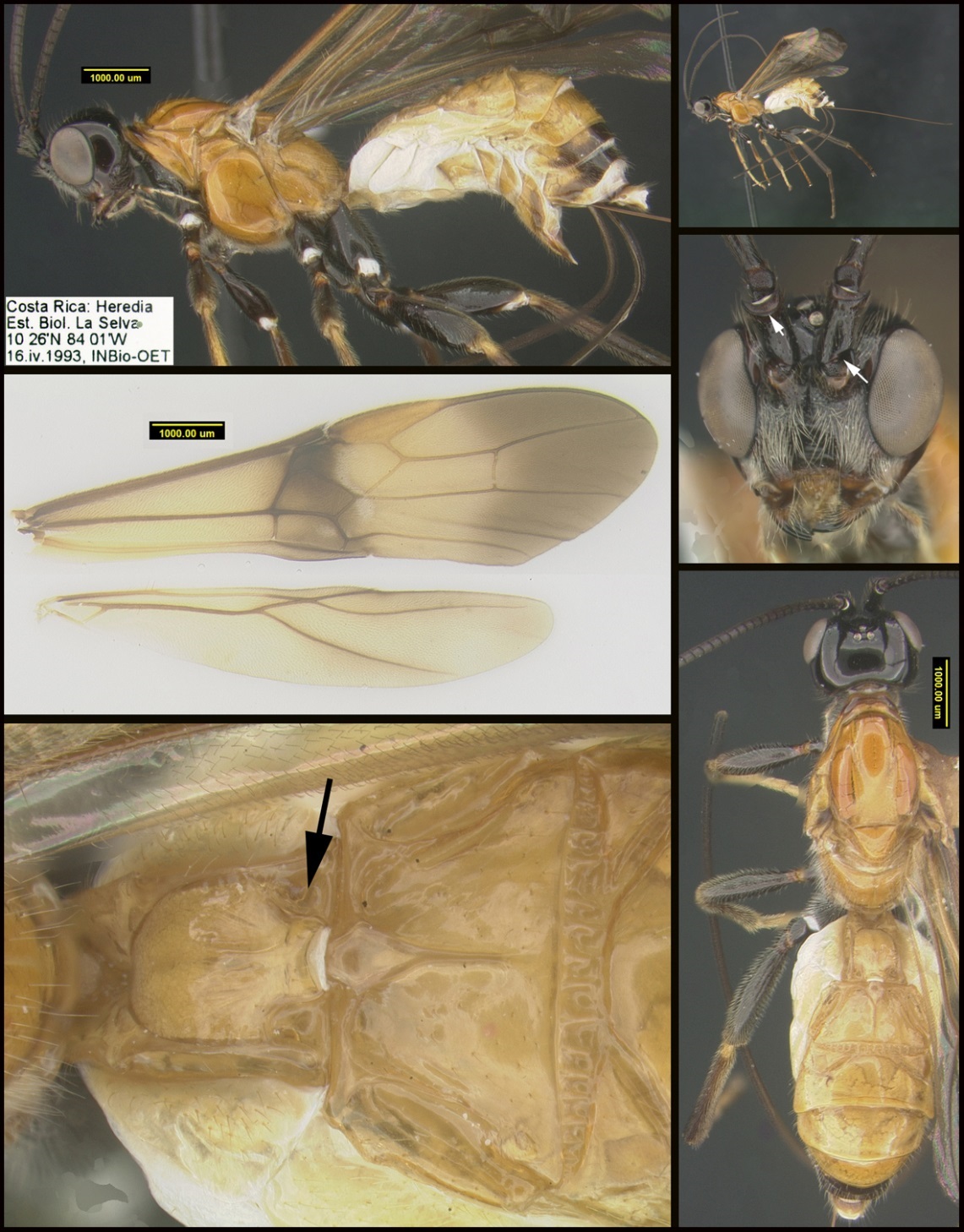

Acgorium Sharkey & Quicke, 2020
Diagnosis. Propodeum smooth with a complete midlongitudinal carina; mesopleuron lacking a sculptured precoxal groove; tergum 1 with deep sculpture.
Biology. The single described species, A. felipechavarriai Sharkey, is a gregarious ectoparasitoid of Dyscophellus phraxanor Godman and Salvin (Hesperiidae) (Quicke et al. 2020b).
Diversity. Uncommon; one described species.
Distribution. The sole known species is from Costa Rica.
Publications. Quicke et al. (2020b).
Amyosoma Viereck, 1913
Diagnosis. Similar to Myosoma but hind femur and tibia with short setae. Median tergum 1 more than 2.0 times as long as maximum width. Scape shorter ventrally than dorsally (when antenna directed anteriorly).
Biology. Amyosoma chinense has been widely introduced to Neotropical areas to control Diatraea species (Crambidae) on sugarcane (Bennett 1971).
Diversity. Other than the introduced species, one species is described from the New World with probably more than 40 undescribed species.
Distribution. Previously thought to be restricted to the Old World but widespread in the Neotropics.
Publications. Papp (2012) described a new species from Honduras.
Atanycolus Foerster, 1862
Diagnosis. Raised median area of median tergite 1 not abruptly emarginate posterolaterally. Tergum 2 with triangular or (rarely) quadrate raised area narrowing posteriorly. Scape with false sub-apical margin, well-separated from the real margin, and scape basally abruptly and concavely narrowing.
Biology. Parasitoids of bark-boring beetles especially Cerambycidae and Buprestidae. Several species have been used to attempt the biological control of the emerald ash borer including Atanycolus cappaerti, a species described in Marsh et al. (2009). A. insolitus (Shenefelt 1978), formerly placed in the monotypic genus Alienoclypeus, is reported as a parasitoid of the weevil Scyphophorus Schoenherr.
Diversity. 65 described species worldwide; about 40 of these are in the New World most of which are Nearctic. We estimate undescribed species will more than double this number.
Distribution. Common in the Nearctic from Canada to Costa Rica; also common in the Palaearctic, but rarely in the Old World tropics (including Australia).
Publications. Shenefelt (1943) revised the North American species.
Note. Quicke et al. (2023) synonymized Alienoclypeus Shenefelt, 1978 with Atanycolus.
Bracon Fabricius, 1804
Diagnosis. Forewing vein 3RSa more than 1.6 times as long as crossvein r. Median tergite 1 not especially elongate, less than 2.0 times as long as greatest width. Marginal cell of fore wing long, vein 3RSb reaching wing margin at least 0.8 times distance between apex of stigma and wing tip. Scape shorter ventrally than dorsally.
Biology. Parasitoids of a wide range of Lepidoptera, Coleoptera, Diptera, and phytophagous Hymenoptera larvae. Flores et al. (2006) described the first phytophagous species. Many Neotropical species appear to be gregarious (Sharkey et al. 2021a).
Diversity. Approximately 200 species from the Neotropical and 90 from the Nearctic. About 1,000 species described worldwide, and many thousands more are undescribed. Very common and highly species-rich.
Distribution. Cosmopolitan.
Publications. Canadian and USA species were revised by Muesebeck (1925) as Microbracon; however, this is of limited use because of the large number of undescribed species. Sharkey et al. (2021a, b) described 48 species from Costa Rica and most of these were associated with host data.
Notes. Several Neotropical species groups are distinctive and some in particular are larger and/or more heavily sculptured than is typical of most Nearctic and Old World species; nevertheless, separation of these into distinct genera would almost certainly render the remainder of Bracon paraphyletic, which they probably are already.
Calobracon Szépligeti, 1902
Diagnosis. Antennal sockets protruding and distally acutely angulate in profile. Scape very short and distinctive, flared dorsally and ventrally.
Biology. Unknown.
Diversity. Two described species, fewer than 10 undescribed.
Distribution. Neotropical, to date known only from Argentina, Brazil, Paraguay and Peru.
Publications. Papp (2011) redescribed the type species.
Cervellus Szépligeti, 1904

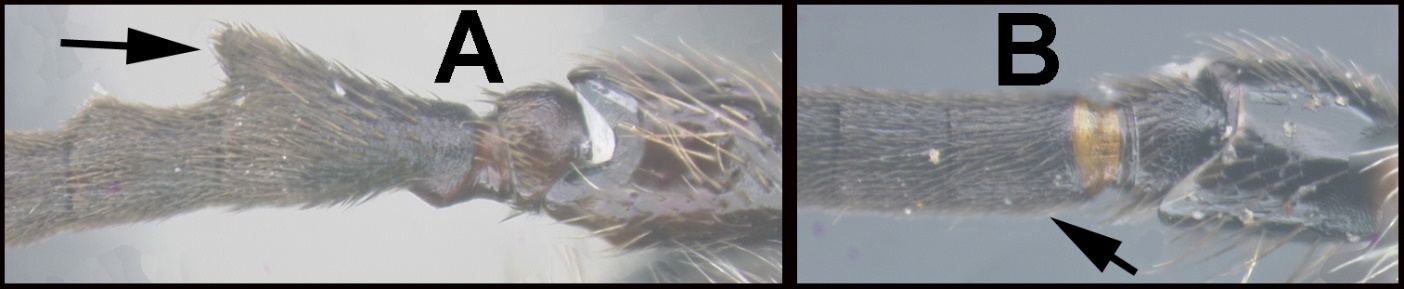

Diagnosis. First flagellomere with thorn-like, pre-apical projection.
Biology. Specimens of Cervellus piranga were reared from the papaya borer weevil Pseudopiazurus obesus associated with Carica papaya in Brazil (Penteado-Dias et al. 2007). Another species was reared from a Coleoptera larva (Quicke 1989c).
Diversity. Seven described species, perhaps as many undescribed.
Distribution. Tropical South America.
Publications. Fahringer (1930) provided a key to the species known at that time.
Chartobracon van Achterberg, 1983
Diagnosis. Body very strongly dorsoventrally depressed, mesosoma more than 2.8 times as long as maximum height.
Biology. Chartobracon huggerti van Achterberg, has been reared from Callidium F. (Cerambycidae) tunnels under spruce bark.
Diversity. Two described species, only one in the Nearctic.
Distribution. Canada (1 species); also northern Europe.
Publications. Van Achterberg (1983a); Quicke and Sharkey (1989) described the Nearctic species.
Coeloides Wesmael, 1838

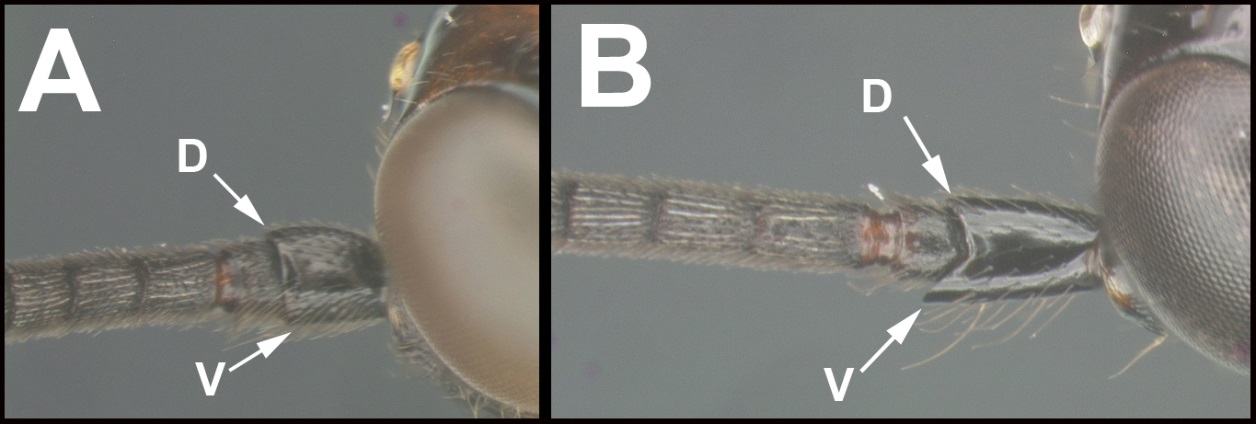

Diagnosis. Scape shorter ventrally than dorsally; flagellum uniformly dark, without white or cream-colored band at mid-length. Basal flagellomere expanded ventrally.
Biology. Parasitoids of bark-boring Coleoptera larvae, especially Scolytidae, Curculionidae and Buprestidae. Some species are probably important in the regulation of bark beetle pests of various coniferous trees.
Diversity. 32 described species, 13 New World species.
Distribution. Canada, USA, and Mexico; also Palaearctic.
Publications. Mason (1978) revised and keyed the species of USA and Canada.
Compsobracon Ashmead, 1900

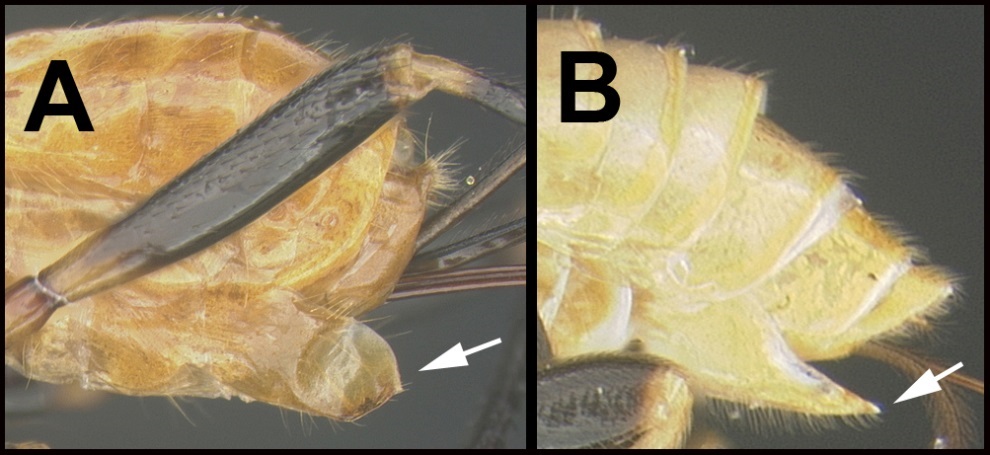

Diagnosis. Hypopygium truncated in profile. Most are large, brightly colored with long ovipositors and have thus been collected frequently.
Biology. One species has been reared from Crambidae (Quicke 1989c). Another was reared from an unidentified caterpillar boring in a thick branch of Alibertia concolor (Santos et al. 2004).
Diversity. 18 described species, perhaps twice or more that number undescribed.
Distribution. Southern USA (one record from Texas) to Brazil and Paraguay, Bahamas and Trinidad.
Publications. No comprehensive revision.
Compsobraconoides Quicke, 1989
Diagnosis. Propodeum simple, entirely smooth. Metasoma with median tergite 2 flat or weakly pinched anteromedially. Scape shorter ventrally than dorsally. Middle part of face clearly demarked from lateral parts by a pair of sub-medial, longitudinal carinae running ventrally from the antennal sockets. Metasomal tergite 2 without midbasal, posteriorly narrowing triangular area.
Biology. Yu and Quicke (1997) described a new species parasitizing adult Azteca ulei (Formicidae) in plant-formed domatia. The reared species described by Fortier & Nishida (2004) was transferred to Gozmanycomp (see Gozmanycomp treatment).
Diversity. At least 5 described species; a very variable genus as currently defined, some species have well-developed midlongitudinal grooves on median tergite 1, some have claws with rounded basal lobes, some have pale-striped antennae, some have the metasoma distinctly sinuous in dorsal view, and some have the suture between metasomal terga 2 and 3 strongly buckled medially. This is likely a polyphyletic group.
Distribution. Southern USA to South America and the Caribbean
Publications. No comprehensive treatment of the genus.
Cyanopterus Haliday, 1835
Diagnosis. Posterior halves of metasomal terga 3-5 mostly smooth, less thickly sclerotized, and relatively flat profile, compared to Digonogastra. Many species intermediate in these features are difficult to place. Scape less than 2.0 times as long as mid-width. Scape apicolaterally emarginate and longer ventrally than dorsally.
Biology. Hosts include larvae of Coleoptera and Lepidoptera.
Diversity. Seven Nearctic and 25 Neotropical species described, many Nearctic and hundreds of Neotropical species undescribed.
Distribution. Nearctic and Neotropics. Common in the Nearctic and very common in the Neotropics. Also in Palearctic.
Publications. There is no comprehensive treatment of the genus in the New World.
Cyclaulacidea Quicke and Delobel, 1995
Diagnosis. Face rugose with a lot of granulate sculpture, often with a raised granulate area medially. Raised median area of median tergite 1 rather square in cross-section, lateral margin more or less carinate posteriorly.
Biology. Parasitoids of Chrysomelidae (Bruchinae) and Curculionidae in palm fruit and similar situations (Quicke and Delobel 1995; Villemant and Simbolotti 2000).
Diversity. Eleven described species, many more undescribed.
Distribution. Neotropical: Mexico south to Brazil.
Publications. Quicke and Delobel (1995) erected the genus and included one species. Leathers et al. (2005) revised and keyed the species.
Cyclaulax Cameron, 1911

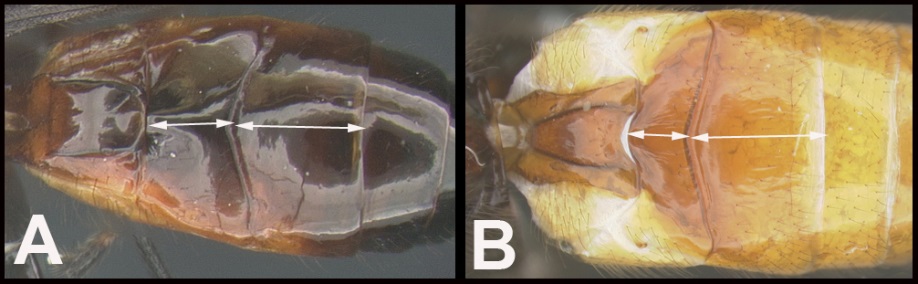

Diagnosis. Length of tergum 2 about half the length of tergum 3. Scape longer ventrally than dorsally. Middle part of face clearly demarked from lateral parts by a pair of sub-medial, longitudinal carinae running ventrally from the antennal sockets. Metasomal tergum 2 without midbasal, posteriorly narrowing triangular area.
Biology. Unknown.
Diversity. Eleven described species, about 90 undescribed.
Distribution. Neotropical: Central America south to Brazil.
Publications. The nine Cyclaulax species represented by types and deposited in the Hungarian National Museum, Budapest, as well as the type-species of the genus, Cyclaulax grandiceps Cameron, housed in the Natural History Museum, London, were redescribed by Papp (2007a) who also presented an identification key to ten (of 11) species.
Digonogastra Viereck, 1912
Diagnosis. Posterior halves of metasomal terga 3-5 partly sculptured, more thickly sclerotized, and relatively convex in profile, compared to Cyanopterus. Median tergite 1 usually with weak medial sub-posterior pit divided by midlongitudinal carina or with several sub-posterior, sub-medial pits. Many species intermediate in these features are difficult to place. Scape less than 2.0 times as long as mid-width, apicolaterally emarginate, longer ventrally than dorsally.
Biology. Hosts include larvae of Coleoptera and Lepidoptera, the latter includes pests of sugarcane and sorghum (Wharton et al. 1989, Quicke 1989a).
Diversity. 260 described species, perhaps several thousand undescribed species.
Distribution. New World, especially diverse in the Neotropics. Possibly extending into the eastern Palaearctic, and one reported from Africa,
Publications. Species descriptions are scattered in many publications and there is no comprehensive revision of the genus. Sharkey et al. (2021a) described five species from Costa Rica.
Notes. Many species were originally included in Iphiaulax Foerster, the latter is now redefined and restricted to the Old World (Quicke 1988c).
Gnathobracon Costa, 1864
Diagnosis. Mandibles massive.
Biology. Unknown.
Diversity. Two described species, probably a few others undescribed.
Distribution. Neotropical: French Guiana, Peru.
Publications. Quicke and Huddleston (1991) described the second species.
Gozmanycomp Papp, 2007
Diagnosis. Propodeum smooth with a distinct longitudinal carina midposteriorly. Scape shorter ventrally than dorsally. Middle part of face clearly demarked from lateral parts by a pair of sub-medial, longitudinal carinae running ventrally from the antennal sockets. Metasomal tergum 2 without midbasal, posteriorly narrowing triangular area.
Biology. Fortier and Nishida (2004) described Gozmanycomp cinnamoni (as Compsobraconoides cinnamoni) reared from galls caused by larvae of the weevil, Camptocheirus sp. (Curculionidae), on branches of Cinnamonum cinnamomifolium (Lauraceae).
Diversity. Two described species, perhaps a dozen more undescribed.
Distribution. Neotropical: Costa Rica to Brazil.
Publications. Papp (2007b).
Gracilibracon Quicke, 1995
Diagnosis. Metasomal tergum 2 strongly 'pinched-up' anteromedially. Scape with false sub-apical margin, well-separated from the real margin, and scape basally abruptly and concavely narrowing
Biology. Unknown.
Diversity. Three described species.
Distribution. Neotropical.
Publications. Quicke (1995).
Habrobracon Ashmead, 1895
Diagnosis. Forewing 3RSa less than 1.5 times length of r (usually less than 1.2 times). Antenna usually with fewer than 25 flagellomeres. Scape not, or only weakly, emarginate apicoIaterally. Scape shorter ventrally than dorsally. Forewing Crossvein r often slightly sinuate.
Biology. Hosts include concealed larvae of a wide variety of Coleoptera, Lepidoptera, Diptera and Hymenoptera but is best known for its gregarious parasitism of flour and grain moths. Habrobracon hebetor has been extensively studied in the laboratory.
Diversity. About 35 described species, and 14 in the New World. Perhaps two or three times these numbers yet to be described.
Distribution. Cosmopolitan.
Publications. Fischer (1968) provided a key to species. Kittel & Maeto (2018) restored H. brevicornis from synonymy.
Hemibracon Szépligeti, 1906
Diagnosis. Raised median area of tergum 1 semicircularly emarginate posterolaterally. Scape with false sub-apical margin, well-separated from the real margin, and scape basally abruptly and concavely narrowing.
Biology. Hemibracon rufidorsum was reared from Cobelura wappesi (Cerambycidae) (Murgas et al. 2018).
Diversity. 22 described species, perhaps several hundred more undescribed.
Distribution. Neotropical, Costa Rica to Argentina.
Publications. Papp (2011) provided a key to and redescribed the six species of Hemibracon described by Szépligeti.
Lapicida Quicke, 1989
Diagnosis. Propodeum and metanotum both with a complete lamelliform midlongitudinal carina. Precoxal groove deep and crenulate. Scape not, or only weakly, emarginate apicoIaterally and shorter ventrally than dorsally.
Biology. Associated with aquatic vegetation (Sagittaria).
Diversity. One described and one undescribed species are known. It is rarely collected because of its particular habitat.
Distribution. Canada to central USA
Publications. Quicke and Sharkey (1989).
Lasiophorus Haliday, 1838
Diagnosis. Face with a median projection that is approximately round in cross section. Rather large specimens.
Biology. Unknown.
Diversity. Two described species and perhaps a dozen undescribed; older catalogues include more but these have subsequently been transferred to other genera.
Distribution. Neotropical: Mexico to Brazil.
Publications. Fahringer (1930) provided a key. Van Achterberg (1983b) re-diagnosed the genus, redescribed and illustrated the type species, and provided a key to the four species that were then included in the genus. Quicke (1989a) transferred two of these species to Palabracon.
Leptobracon Szépligeti, 1901
Diagnosis. Metasomal terga 2-5 long and slender and tergum 3 more than 2 times as long as maximally wide: posterior margins of terga 3-5 strongly emarginate and membranous medially, with extremely long internal apodemes. A long, slender wasp.
Biology. Unknown.
Diversity. Four described species, few undescribed, rarely collected.
Distribution. Neotropical.
Publications. Fahringer (1930) provided a key to species.
Megabracon Szépligeti, 1906
Diagnosis. Scape very long, more than 2.5 times as long as mid-width. Scape apicolaterally emarginate, longer ventrally than dorsally, large specimens.
Biology. De Santis and Esquivel (1966) reported Megabracon as a parasitoid of Mallodon spinibarbis (as Stenodontes spinibarbis) (Cerambycidae).
Diversity. There are nine described species but none described since 1920. Probably 2 or 3 times this number of species are undescribed.
Distribution. Neotropical: Brazil to Guatemala.
Publications. There is no revision of the genus.
Megacoeloides Quicke, 1989
Diagnosis. Scape longer ventrally than dorsally (when antenna directed anteriorly); flagellum with white or cream-colored band near midlength. Basal flagellomere expanded ventrally.
Biology. Unknown.
Diversity. One described species, probably fewer than 10 undescribed.
Distribution. Neotropical: Colombia, French Guiana, Peru.
Publications. Quicke (1989b).
Myosoma Brullé, 1846

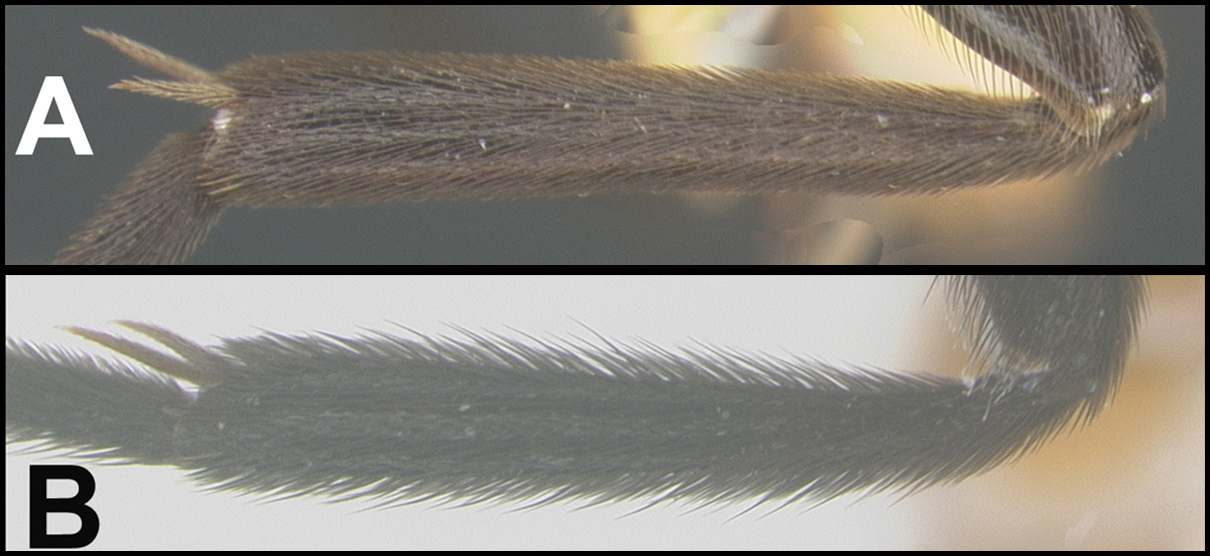

Diagnosis. Similar to Amyosoma but hind femur and tibia with long black setae. Metasomal tergum 1 more than 2.0 times as long as maximum width. Scape shorter ventrally than dorsally.
Biology. Parasitoids of Lepidoptera borers, especially Pyralidae (Mason 1978).
Diversity. 18 described species, probably 20 or 30 undescribed.
Distribution. Southern USA to Brazil.
Publications. Mason (1978) revised the species of North America.
Myosomatoides Quicke, 1994
Diagnosis. Hind tibia strongly laterally compressed, very broad in profile with especially long setae. Metasomal tergum 2 with a midlongitudinal ridge.
Biology. One species has been reared from larvae of a stem-boring Diatraea sp. (Pyralidae) (Quicke 1994).
Diversity. Two described species and a few undescribed.
Distribution. Neotropical: widely distributed but rarely collected.
Publications. Quicke (1994).
Palabracon Quicke, 1988
Diagnosis. Flagellomere 1 simple or occasionally apically flared. Face with large, horizontal, dorsally concave plate-like projection.
Biology. One species has been reared from Diatraea (Lepidoptera: Crambidae) (Quicke 1988b).
Diversity. Three described species, probably a handful more undescribed, rarely collected.
Distribution. Neotropical: Brazil, Mexico, Ecuador.
Publications. Quicke (1988b).

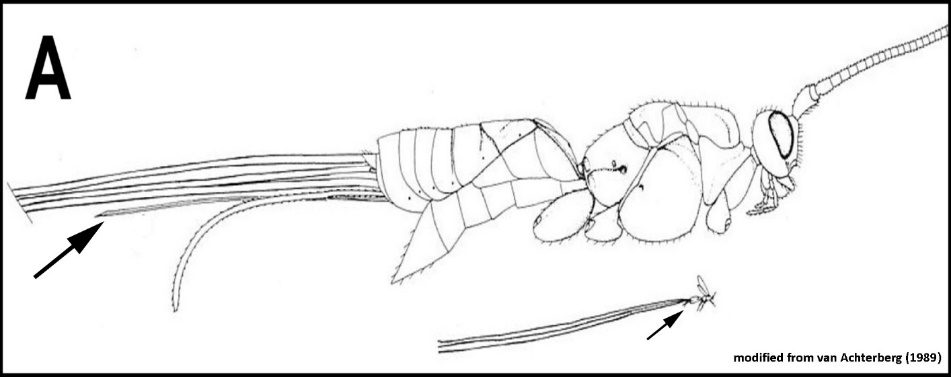

Pheloura van Achterberg, 1989
Diagnosis. Large specimens with three pseudo-ovipositors that are more than 5 times as long as body. The true ovipositor and ovipositor sheaths are much shorter.
Biology. Unknown.
Diversity. Only one species; rarely collected.
Distribution. Neotropical: Colombia, Costa Rica.
Publications. Van Achterberg (1989).
Sacirema Quicke, 1995
Diagnosis. Scape shorter ventrally than dorsally. Middle part of face clearly demarked from lateral parts by a pair of sub-medial, longitudinal carinae running ventrally from the antennal sockets. Face coarsely carinate-rugose medially with little or no crenulate sculpture and without a raised granulate area medially. Raised median area of metasomal tergum 1 rounded in cross-section. Metasomal tergum 2 without midbasal, posteriorly narrowing triangular area, its length subequal to tergum 3 length.
Biology. Unknown.
Diversity. Three described species, dozens more undescribed.
Distribution. Neotropical.
Publications. Papp (2007c) described a new species from the Lesser Antilles, transferred a species from Bracon, redescribed the type species, and provided an illustrated key to the three known species. Sharkey et al. (2021b) described a new species from Costa Rica.
Vipio Latreille, 1804
Diagnosis. Some species cannot be distinguished with certainty from Vipiomorpha; however, the key above works in more than 90% of the cases. Vipiomorpha always have an angular basal lobe on the claws whereas that is true only of approximately 50% of Vipio. Vipiomorpha never has a pair of long setae or small group of setae above the hypoclypeal depression, and never has an elongate labio-maxillary complex which is present in nearly all Vipio.
Biology. Parasitoids of concealed Lepidoptera, Coleoptera, and probably 'Symphyta' (Hymenoptera) larvae.
Diversity. There are 11 described species in the Nearctic and 16 in the Neotropics with some species overlapping. There are probably 20 to 40 undescribed New World species.
Distribution. Canada to South America though less common in the southern portion of the range. Also Palaearctic, Palaeotropics (occasional),
Publications. Inayatullah et al. (1998) revised the Nearctic species north of Mexico. Quicke et al. (2020a) revised the species south of Nicaragua and included 13 species.
Vipiomorpha Tobias, 1962
Diagnosis. Propodeum coarsely sculptured. Forewing marginal cell short, 3RSb reaching wing margin less than 0.8 times distance between apex of stigma and wing tip, as in Vipio; forewing (RS+M)a straight. Scape not, or only weakly, emarginate apicoIaterally and shorter ventrally than dorsally
Biology. Unknown.
Diversity. Three described species, a few more undescribed.
Distribution. Only one undescribed species from South America known in the New World. Also Palearctic and Afrotropical (especially southern Africa).
Publications. Tobias (1962) erected the genus.
Acknowledgements
We thank Kees van Achterberg for permission to use and modify his drawings. Special thanks to our three referees: Alejandro Alejandro Zaldívar Riverón and Scott R. Shaw who thoroughly checked the key, and John Huber for very careful attention to the wording throughout. Finally, thanks to editors Heather Proctor and Spencer Monckton.
References
Aguirre, H., S.R. Shaw, and A. Rodríguez Jiménez. 2017. Contrasting patterns of altitudinal distribution between parasitoid wasps of the subfamilies Braconinae and Doryctinae (Hymenoptera: Braconidae). Insect Conservation and Diversity, 2017: 1-11. https://doi.org/10.1111/icad.12265
Bennett, F.D. 1971. Current status of biological control of the small moth borers of sugar cane Diatraea spp. (Lep., Pyralididae). Entomophaga, 16:111-124. https://doi.org/10.1007/BF02370694
Belshaw, R., Lopez-Vaamonde, V., Degerli, N. and Quicke, D.L.J. 2001. Paraphyletic taxa and taxonomic chaining: evaluating the classification of braconine wasps (Hymenoptera: Braconidae) using 28S D2-3 rDNA sequences and morphological characters. Biological Journal of the Linnean Society, 73: 411-424. https://doi.org/10.1111/j.1095-8312.2001.tb01370.x
De Santis, L. and Esquivel, L. 1966. Tercera lista de Himenopteros parasitos y predatores de los insectos de la Republica Argentina. Revista del Museo de La Plata. Sec. Zoologia. (N.S.), 9: 47-215.
Fahringer, J. 1930. Ueber einige suedamerikanischer Braconidengattungen. Wiener entomologische Zeitung, 47: 19-31.
Fischer, M. 1968. Ueber gezuechtete Raupenwespen (Hymenoptera, Braconidae). Pflanzengschutz Berichte, 37: 97-140.
Flores, S., Nassar, J.M. and Quicke, D.L.J. 2006. Reproductive phenology and pre-dispersal seed predation in Protium tovarense (Burseraceae), with description of the first known phytophagous ‘Bracon’ species (Hymenoptera: Braconidae: Braconinae). Journal of Natural History, 39: 3663-3685. https://doi.org/10.1080/00222930500392659
Fortier, J. and Nishida, K. 2004. A new species and host association biology of Neotropical Compsobraconoides Quicke (Hymenoptera: Braconidae). Journal of Hymenoptera Research, 13: 228-233.
Inayatullah, M., Shaw, S.R. and Quicke, D.L.J. 1998. The genus Vipio Latreille (Hymenoptera: Braconidae) of America north of Mexico. Journal of Natural History, 32(1): 117-148. https://doi.org/10.1080/00222939800770071
Kittel, R.N. and Maeto, K. 2018. Revalidation of Habrobracon brevicornis stat. rest. (Hymenoptera: Braconidae) based on the CO1, 16S, and 28S gene fragments. Journal of Economic Entomology, 112: 906–911. https://doi.org/10.1093/jee/toy368
Leathers, J.W., Judd, D.D. and Brower, A.V.Z. 2005. A review of the New World Braconid genus Cyclaulacidea (Hymenoptera) with key and descriptions of nine new species. Journal of Hymenoptera Research, 14: 151-176.
Marsh, P.M., Strazanac, J.S. and Laurusonis, S.Y. 2009. Description of a New Species of Atanycolus (Hymenoptera: Braconidae) from Michigan Reared from the Emerald Ash Borer, Agrilus planipennis (Coleoptera: Buprestidae: Agrilinae). The Great Lakes Entomologist, 42: 8-15. https://doi.org/10.22543/0090-0222.2204
Mason, W.M. 1978. A synopsis of the Nearctic Braconini, with revisions of Nearctic species of Coeloides and Myosoma (Hymenoptera: Braconidae). The Canadian Entomologist, 110: 721-768. https://doi.org/10.4039/Ent110721-7
Muesebeck, C.F.W. 1925. A revision of the parasitic wasps of the genus Microbracon occurring in America north of Mexico. Proceedings of the United States National Museum, 67: 1-85.
Murgas, A.S., Garay, A.L. and Ch, Ó.L. 2018. Hemibracon rufidorsum (Szepligeti)(Hymenoptera: Braconidae: Braconinae), parasitoide de Cobelura wappesi (Corbett) (Coleoptera: Cerambycidae: Lamiinae). Revista Colón Ciencias, Tecnología y Negocios, 5(1), 26-32.
Papp, J. 2007a. Szépligeti's Cyclaulax types deposited in the Hungarian Natural History Museum (Hymenoptera: Braconidae: Braconinae). Journal of Hymenoptera Research, 16: 147-166.
Papp, J. 2007b. A new genus and two new species of Braconidae (Hymenoptera) dedicated to Lásló Gozmány. Acta Zoologica Academiae Scientiarum Hungaricae, 53: 295-305.
Papp, J. 2007c. First survey of the Sacirema Quicke species (Hymenoptera: Braconidae: Braconinae). Genus (Wroclaw), 18: 507-515.
Papp, J. 2011. Redescriptions of eight species by Gy. Szépligeti belonging to the genera Calobracon, Diamblomera and Hemibracon with a new Diamblomera species (Hymenoptera, Braconidae: Braconinae). Annales Historico-naturales Musei Nationalis Hungarici, 103: 315-348.
Papp, J. 2012. A taxonomic study of the Myosoma genus-group with description of Amyosoma cavei sp. n. from Honduras (Hymenoptera: Braconidae: Braconinae: Braconini). Acta Zoologica Academiae Scientiarum Hungaricae, 58: 1-29.
Penteado-Dias, A.M., Moreira B., Antonio M., Zarbin, G. and Henrique, P. 2007. A new species of Cervellus Szepligetí (Hymenoptera, Braconidae, Braconinae) with biological notes. Revista Brasileira de Entomologia, 51: 8-11. https://doi.org/10.1590/S0085-56262007000100003
Perioto, N.W., Lara, R.I.R., Ferreira, C.S., Fernandes, D.R.R., Pedroso, E.D.C., Volpe, H.X.L., Nais, J., Correa, L.R.B. and Viel, S.R. 2011. A new phytophagous Bracon Fabricius (Hymenoptera, Braconidae) associated with Protium ovatum Engl. (Burseraceae) fruits from Brazilian savannah. Zootaxa, 3000: pp.59-65. https://doi.org/10.11646/zootaxa.3000.1.4
Quicke, D.L.J. 1988a. Reclassification of some Neotropical Braconinae (Hym., Braconidae). Entomologist's Monthly Magazine, 124: 195-199.
Quicke, D.L.J. 1988b. A new genus and species of Braconinae (Hymenoptera: Braconidae) parasitic on Diatraea sp. (Lepidoptera: Pyralidae) from Ecuador. Bulletin of Entomological Research, 78: 15-18. https://doi.org/10.1017/S0007485300016035
Quicke, D.L.J. 1988c. Digonogastra: the correct name for Nearctic lphiaulax of authors (Hymenoptera, Braconidae). Proceedings of the Entomological Society of Washington, 90: 196-200.
Quicke, D.L.J. 1989a. Reclassification of some New World species of Braconinae (Hym., Braconidae). Entomologist's Monthly Magazine, 125: 119-121.
Quicke, D.L.J. 1989b. A new Neotropical genus and species of Coeloidini (Hym., Braconidae, Braconinae). Entomologist's Monthly Magazine, 125: 9-12.
Quicke, D.L.J. 1989c. Further new host records for genera and species of Braconinae (Hym., Braconidae). Entomologist's Monthly Magazine, 125: 199-205.
Quicke, D.L.J. 1991. The Braconinae type specimens of G. Szépligeti in Budapest (Hymenoptera, Braconidae). Annales Historico-Naturales Musei Nationalis Hungarici, 83: 169-186.
Quicke, D.L.J. 1994. Myosomatoides gen. nov. (Hymenoptera: Braconidae), a Neotropical larval parasitoid of stem-boring pests, Diatraea. Journal of Hymenoptera Research, 3: 227-231.
Quicke, D.L.J. 1995. Two new Neotropical genera of Braconinae (Hymenoptera, Braconidae). Entomologist's Monthly Magazine, 131: 223-228.
Quicke, D.L.J., 1997. Subfamily Braconinae, pp.149-174. In: Wharton, R.A., Marsh, P.M., & Sharkey, M.J. (eds). Manual of the New World genera of Braconidae (Hymenoptera). Special Publication of the International Society of Hymenopterists, 439 pp.
Quicke, D.L.J. and Delobel, A. 1995. A new Neotropical braconine (Hym., Braconidae) parasitic on Bruchidae (Col.). Entomologist's Monthly Magazine, 131: 215-222.
Quicke, D.L.J. and Genise, J.F. 1994. Reclassification of the South American species of Braconinae (Hym., Braconidae) described by Brèthes. Entomologist's Monthly Magazine, 130: 35-45.
Quicke, D.L.J. and Huddleston, T. 1991. The extraordinary genus Gnathobracon Costa (Hym., Braconidae), with the description of a new species from Peru. Entomologist's Monthly Magazine, 127: 191-195.
Quicke, D.L.J. and Sharkey, M.J. 1989. A key to and notes on the genera of Braconinae (Hymenoptera: Braconidae) from America north of Mexico with descriptions of two new genera and three new species. The Canadian Entomologist, 121: 337-361. https://doi.org/10.4039/Ent121337-4
Quicke, D.L.J., Shaw, S.R., Inayatullah, M. and Butcher, B.A. 2020a. The genus Vipio Latreille (Hymenoptera, Braconidae) in the Neotropical Region. ZooKeys, 925: 89-140. https://doi.org/10.3897/zookeys.925.48457
Quicke, D.L.J, Sharkey, M.J., Janzen, D., Hallwachs, W., Hebert, P.D.N. and Butcher, B.A. 2020b. A new genus and species of Neotropical gregarious braconine parasitoid (Hymenoptera: Braconidae) of a caterpillar (Lepidoptera: Hesperiidae). Zootaxa, 4816: 370–376. https://doi.org/10.11646/zootaxa.4816.3.7
Quicke, D.L.J., Jasso-Martínez, J.M., Ranjith, A.P., Sharkey, M.J., Manjunath, R., Naik, S., Hebert, P.D., Priyadarsanan, D.R., Thurman, J. and Butcher, B.A. 2023. Phylogeny of the Braconinae (Hymenoptera: Braconidae): a new tribal order! Systematic Entomology. https://doi.org/10.1111/syen.12608
Ranjith A.P., Quicke, D.L.J., Saleem, U.K.A., Butcher, B.A., Zaldivar-Riveron, A. and Nasser, M. 2016. Entomophytophagy in an Indian braconid 'parasitoid' wasp (Hymenoptera): specialized larval morphology, biology and description of a new species. PLoS ONE, 11(6): e0156997LepR1. https://doi.org/10.1371/journal.pone.0156997
Ranjith, A.P., Quicke, D.L.J., Manjusha, K., Butcher, B.A. and Nasser, M. 2022. Completely predatory development is described in a braconid wasp. Scientific Reports, 12(1): p.1747. https://doi.org/10.1038/s41598-022-05705-x
Ratnasingham,S. and Hebert, P.D. 2013. A DNA-based registry for all animal species: the Barcode Index Number (BIN) system. PloS one. 8(7):e66213. https://journals.plos.org/plosone/article?id=10.1371/journal.pone.0066213
Santos, J.C., Viana, L.R., Silveira, F.A.O., Penteado-Dias, A.M. and Fernandes, G.W. 2004. Ovipositing behaviour of Compsobracon mirabilis (Szépligeti) (Hymenoptera, Braconidae) in a cerrado habitat, southeastern Brazil. Revista Brasileira de Entomologia, 48: 139-140. https://doi.org/10.1590/S0085-56262004000100024
Schöller, M. 2010. Biological control of stored-product insects in commodities, food processing facilities and museums. Julius-Kühn-Archiv, 425: 596. https://doi.org/10.5073/jka.2010.425.167.165
Sharkey, M., K.J. Athey, J.L. Fernández-Triana, A.M. Penteado-Dias, S.K. Monckton and D.L.J. Quicke. 2023. Key to the New World subfamilies of the family Braconidae (Hymenoptera). Canadian Journal of Arthropod Identification, 49: 1-43. https://doi.org/10.3752/cjai.2023.49
Sharkey, M.J., Janzen, D.H., Hallwachs, W., Chapman, E.G., Smith, M.A., Dapkey, T., Brown, A., Ratnasingham, S., Naik, S., Manjunath, R., Perez, K., Milton, M., Hebert, P., Shaw, S.R., Kittel, R.N., Solis, M.A., Metz, M.A., Goldstein, P.Z., Brown, J.W., Quicke, D.L.J., van Achterberg, C., Brown, B.V. and Burns, J.M. 2021a. Minimalist revision and description of 403 new species in 11 subfamilies of Costa Rican braconid parasitoid wasps, including host records for 219 species. ZooKeys, 1013: 1-665. https://doi.org/10.3897/zookeys.1013.55600
Sharkey, M.J., Baker, A., McCluskey, K., Smith, A., Naik, S., Ratnasingham, S., Manjunath, R., Perez, K., Sones, J, D’Souza, M., Jacques, B.S., Hebert, P., Hallwachs, W. and Janzen, D. 2021b. Addendum to a minimalist revision of Costa Rican Braconidae: 28 new species and 23 host records. ZooKeys, 1075: 77–136. https://doi.org/10.3897/zookeys.1075.72197
Shaw, M.R. and Huddleston, T. 1991. Classification and biology of braconid wasps (Hymenoptera: Braconidae). Handbooks for the Identification of British Insects, 7(11): 1-126.
Shenefelt, R.D. 1943. The genus Atanycolus Foerster in America north of Mexico. Research Studies of the State College of Washington, 11: 51-163.
Shenefelt, R.D. 1978. Braconidae 10. Braconinae, Gnathobraconinae, Mesostoinae, Pseudodicrogeniinae, Telengainae, Ypsistocerinae, plus Braconidae in general, major groups, unplaced genera and species. Hymenopterorum Catalogus 15: 1425-1872. [nova editio]
Tillman, P.G. and Cate, J.R. 1989. Six new hosts of Bracon mellitor (Hymenoptera: Braconidae), with a review of recorded hosts. Environmental Entomology, 18: 328-333. https://doi.org/10.1093/ee/18.2.328
Tobias, V.I. 1962. New genera of parasitic Braconids (Hymenoptera, Braconidae) in the fauna USSR. (In Russian with English summary). Zoologicheskii Zhurnal, 41(8): 1190-1197.
van Achterberg, C. 1983a. Three new Palaearctic genera of Braconinae (Hymenoptera, Braconidae). Entomologica Scandinavica, 14:69-76. https://doi.org/10.1163/187631283X00443
van Achterberg, C. 1983b. Six new genera of Braconina from the Afrotropical Region (Hymenoptera, Braconidae). Tijdschrift voor Entomologie, 126: 175-202.
van Achterberg, C. 1989. Pheloura gen. nov., a neotropical genus with an extremely long pseudoovipositor (Hymenoptera: Braconidae). Entomologische Berichten, 49: 105-108.
Villemant, C. and Simbolotti, G. 2000. Une nouvelle espece du Cyclaulacidea parasite d'un charancon revageur du palmier Euterpe oleracea au Bresil (Hymenoptera, Braconidae). Revue Francaise d'Entomologie (Nouvelle Serie), 22: 167-171.
Wharton, R.A., Smith, J.W., Quicke, D.L.J. and Browning, H.W. 1989. Two new North American species of Digonogastra Viereck (Hym., Braconidae) parasitic on cane boring Lepidoptera. Bulletin of Entomological Research, 79: 401-410.
Wharton, R.A., Marsh, P.M. and Sharkey, M.J. (eds). 1997. Manual of the New World genera of Braconidae (Hymenoptera). Special Publication of the International Society of Hymenopterists, 439 pp.
Yu, D.W. and Quicke, D.L.J. 1997. Compsobraconoides (Braconidae: Braconinae), the first hymenopteran ectoparasitoid of adult Azteca ants (Hymenoptera: Formicidae). Journal of Hymenoptera Research, 6: 419-421.
